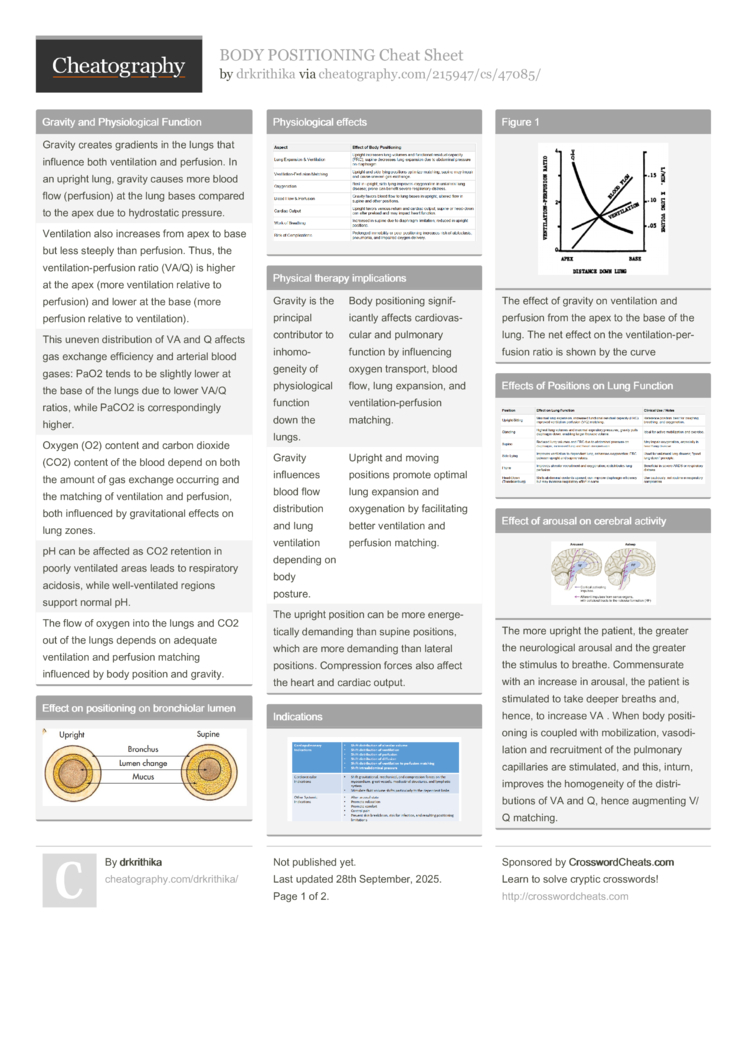

BODY POSITIONING Cheat Sheet (DRAFT) by

Understanding the physiological effects of body position on oxygen transport and how pathophysiology disrupts these normal processes is fundamental to prescribing body positioning for a given patient. Therapeutic body positioning is prescribed by physical therapists to optimize cardiovascular and pulmonary function and oxygen transport.

This is a draft cheat sheet. It is a work in progress and is not finished yet.

Gravity and Physio­logical Function

Gravity creates gradients in the lungs that influence both ventil­ation and perfusion. In an upright lung, gravity causes more blood flow (perfu­sion) at the lung bases compared to the apex due to hydros­tatic pressure.
Ventil­ation also increases from apex to base but less steeply than perfusion. Thus, the ventil­ati­on-­per­fusion ratio (VA/Q) is higher at the apex (more ventil­ation relative to perfusion) and lower at the base (more perfusion relative to ventil­ation).
This uneven distri­bution of VA and Q affects gas exchange efficiency and arterial blood gases: PaO2 tends to be slightly lower at the base of the lungs due to lower VA/Q ratios, while PaCO2 is corres­pon­dingly higher.
Oxygen (O2) content and carbon dioxide (CO2) content of the blood depend on both the amount of gas exchange occurring and the matching of ventil­ation and perfusion, both influenced by gravit­ational effects on lung zones.
pH can be affected as CO2 retention in poorly ventilated areas leads to respir­atory acidosis, while well-v­ent­ilated regions support normal pH.
The flow of oxygen into the lungs and CO2 out of the lungs depends on adequate ventil­ation and perfusion matching influenced by body position and gravity.

Effect on positi­oning on bronch­iolar lumen

Physio­logical effects



Physical therapy implic­ations

Gravity is the principal contri­butor to inhomo­geneity of physio­logical function down the lungs.
Body positi­oning signif­icantly affects cardio­vas­cular and pulmonary function by influe­ncing oxygen transport, blood flow, lung expansion, and ventil­ati­on-­per­fusion matching.
Gravity influences blood flow distri­bution and lung ventil­ation depending on body posture.
Upright and moving positions promote optimal lung expansion and oxygen­ation by facili­tating better ventil­ation and perfusion matching.
The upright position can be more energe­tically demanding than supine positions, which are more demanding than lateral positions. Compre­ssion forces also affect the heart and cardiac output.

Indica­tions

Figure 1

The effect of gravity on ventil­ation and perfusion from the apex to the base of the lung. The net effect on the ventil­ati­on-­per­fusion ratio is shown by the curve

Effects of Positions on Lung Function



Effect of arousal on cerebral activity

The more upright the patient, the greater the neurol­ogical arousal and the greater
the stimulus to breathe. Commen­surate with an increase in arousal, the patient is stimulated to take deeper breaths and, hence, to increase VA . When body positi­oning is coupled with mobili­zation, vasodi­lation and recrui­tment of the pulmonary capill­aries are stimul­ated, and this, inturn, improves the homoge­neity of the distri­butions of VA and Q, hence augmenting V/ Q matching.

Effects of Positions on Lung Function

Monitor Responses to Position Changes

ABG Parameters
Subjec­tively, the patient’s facial expres­sion, respir­atory distress, dyspnea, anxiety, peripheral edema, discom­fort, and pain are assessed.
Object­ively, heart rate, blood pressure, respir­atory rate, SaO2, flow rates, and bedside spirometry can be readily assessed.
