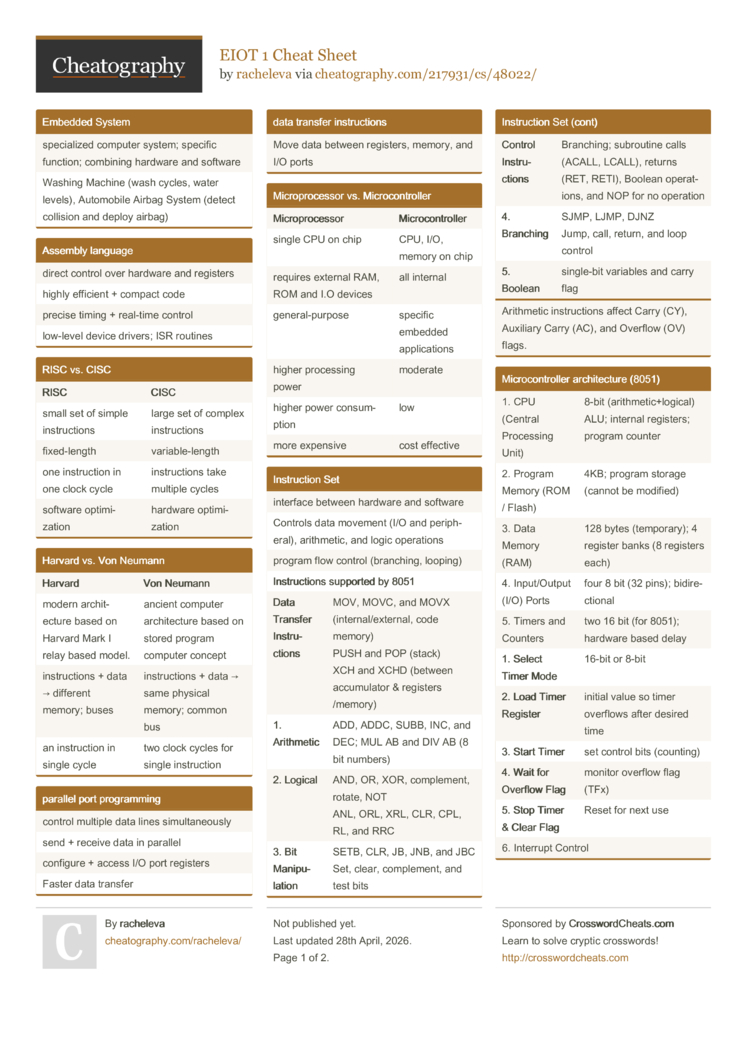

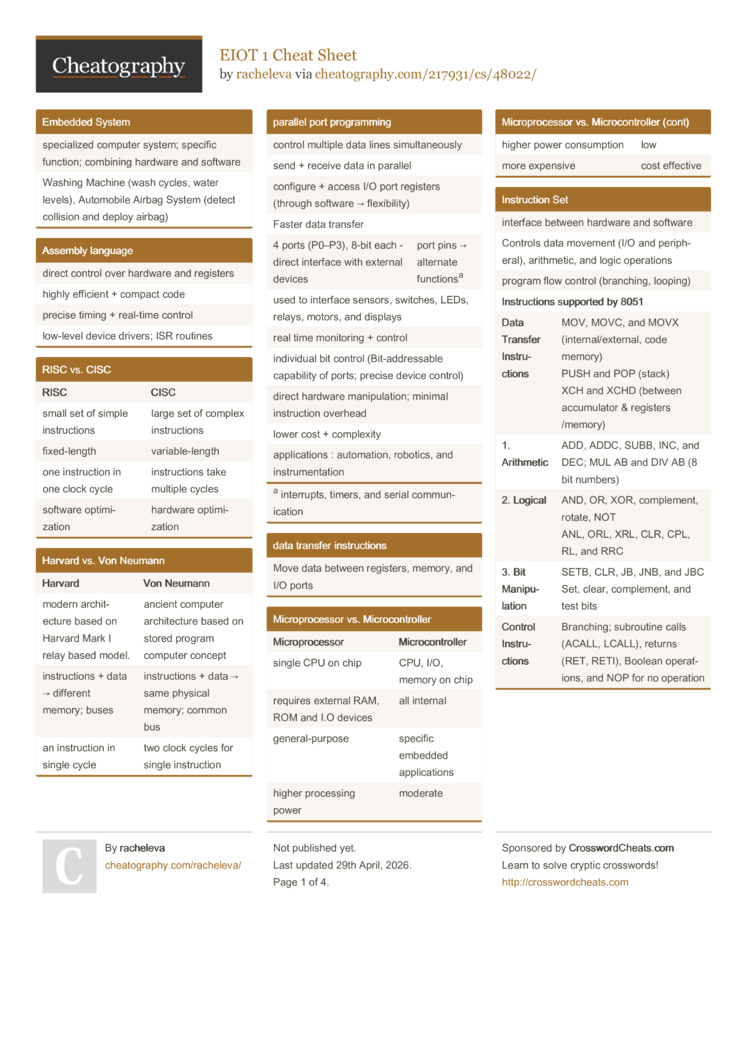

Embedded System
specialized computer system; specific function; combining hardware and software |
Washing Machine (wash cycles, water levels), Automobile Airbag System (detect collision and deploy airbag) |
Assembly language
direct control over hardware and registers |
highly efficient + compact code |
precise timing + real-time control |
low-level device drivers; ISR routines |
RISC vs. CISC
RISC |
CISC |
small set of simple instructions |
large set of complex instructions |
fixed-length |
variable-length |
one instruction in one clock cycle |
instructions take multiple cycles |
software optimization |
hardware optimization |
Harvard vs. Von Neumann
Harvard |
Von Neumann |
modern architecture based on Harvard Mark I relay based model. |
ancient computer architecture based on stored program computer concept |
instructions + data → different memory; buses |
instructions + data → same physical memory; common bus |
an instruction in single cycle |
two clock cycles for single instruction |
parallel port programming
control multiple data lines simultaneously |
send + receive data in parallel |
configure + access I/O port registers (through software → flexibility) |
Faster data transfer |
4 ports (P0–P3), 8-bit each - direct interface with external devices |
port pins → alternate functionsa |
used to interface sensors, switches, LEDs, relays, motors, and displays |
real time monitoring + control |
individual bit control (Bit-addressable capability of ports; precise device control) |
direct hardware manipulation; minimal instruction overhead |
lower cost + complexity |
applications : automation, robotics, and instrumentation |
a interrupts, timers, and serial communication
data transfer instructions
Move data between registers, memory, and I/O ports |
|
|
Microprocessor vs. Microcontroller
Microprocessor |
Microcontroller |
single CPU on chip |
CPU, I/O, memory on chip |
requires external RAM, ROM and I.O devices |
all internal |
general-purpose |
specific embedded applications |
higher processing power |
moderate |
higher power consumption |
low |
more expensive |
cost effective |
Instruction Set
interface between hardware and software |
Controls data movement (I/O and peripheral), arithmetic, and logic operations |
program flow control (branching, looping) |
Instructions supported by 8051 |
Data Transfer Instructions |
MOV, MOVC, and MOVX (internal/external, code memory)
PUSH and POP (stack)
XCH and XCHD (between accumulator & registers /memory) |
1. Arithmetic |
ADD, ADDC, SUBB, INC, and DEC; MUL AB and DIV AB (8 bit numbers) |
2. Logical |
AND, OR, XOR, complement, rotate, NOT
ANL, ORL, XRL, CLR, CPL, RL, and RRC |
3. Bit Manipulation |
SETB, CLR, JB, JNB, and JBC
Set, clear, complement, and test bits |
Control Instructions |
Branching; subroutine calls (ACALL, LCALL), returns (RET, RETI), Boolean operations, and NOP for no operation |
4. Branching |
SJMP, LJMP, DJNZ
Jump, call, return, and loop control |
5. Boolean |
single-bit variables and carry flag |
Arithmetic instructions affect Carry (CY), Auxiliary Carry (AC), and Overflow (OV) flags.
Microcontroller architecture (8051)
1. CPU (Central Processing Unit) |
8-bit (arithmetic+logical)
ALU; internal registers; program counter |
2. Program Memory (ROM / Flash) |
4KB; program storage (cannot be modified) |
3. Data Memory (RAM) |
128 bytes (temporary); 4 register banks (8 registers each) |
4. Input/Output (I/O) Ports |
four 8 bit (32 pins); bidirectional |
5. Timers and Counters |
two 16 bit (for 8051); hardware based delay |
1. Select Timer Mode |
16-bit or 8-bit |
2. Load Timer Register |
initial value so timer overflows after desired time |
3. Start Timer |
set control bits (counting) |
4. Wait for Overflow Flag |
monitor overflow flag (TFx) |
5. Stop Timer & Clear Flag |
Reset for next use |
6. Interrupt Control |
Interrupt - temporarily halt normal execution.
execute a specific interrupt service routine (ISR) |
immediate response to external or internal events; real-time |
7. Serial Communication Interfaces |
8. Clock / Oscillator |
9. Power Supply and Reset Circuit |
Program Status word |
8-bit wide; 6 active flags; 2 user-defined bits |
Accumulator |
Stores operands and results of arithmetic and logic operations |
Program Counter |
holds address of next instruction to be executed |
Stack Pointer |
point to top of the stack |
Special Function Registers 8051 |
control + configure peripherals (/O ports, timers/counters, serial communication, and interrupts)
CPU control and status information
direct access to hardware
special operations beyond general purpose |
Data Pointer |
16-bit user-accessible register; access external memory |
In the RAM, only one register bank can be active at a time
|
|
Addressing modes
Immediate Addressing |
transfers data (8 bit constant) directly to destination
MOV A, #6AH
instructions are 2 bytes long, execute in 1 cycle |
Register Addressing |
specifies the memory address
MOV A, 04H |
Direct Addressing |
uses register names (R0–R7)
MOV A, R4
1 byte and 1 cycle |
Indirect Addressing |
address of data inside a register
MOV A, @R0 |
Indexed Addressing |
accessing data from program memory using MOVC
MOVC A, @A+DPTR
2 machine cycles |
Timers and counters
Timer0, Timer1 |
16 bit; accessed using two 8-bit registers: THx and TLx. |
internal clock → derived from external crystal oscillator |
timer clock frequency is 1/12th of the crystal frequency (machine cycle frequency) |
TMOD register |
8-bit register; select timer mode + operations |
lower 4 → Timer0; upper 4 → Timer1 |
GATE bit → enables timer (when external interrupt pin + run control bit active) |
C/T bit → selects between timer (internal clock) and counter mode (external pulses) |
Modes |
Mode 0 - 13-bit timer; 8 bits of THx and 5 bits of TLx |
Mode 1 - 16-bit timer; THx and TLx form a full 16-bit counter. |
Mode 2 - 8-bit auto-reload; TLx reloads automatically from THx after overflow. |
Mode 3 - splits Timer0 into two 8-bit timers; Timer1 stops functioning |
TCON register |
controls timer operation and contains overflow flags (TF0, TF1) and run control bits (TR0, TR1). |
Applications:
Delay generation
Event counting
Baud rate generation
Serial Communication
Pins: TxD, RxD (transmit/receive bit by bit) |
Register: SBUF |
Flags: TI → Transmission Interrupt (complete)
RI → Reception Interrupt |
TxD: LSB sent first; load 8 bit data into register; transmitted serially; TI set; Timer1 or internal clock |
RxD: stored in register; checked for transmission errors; no error → RI set |
SM2 bit controls error checking:
when SM2 = 1, error checking is performed before setting RI;
when SM2 = 0, the interrupt is generated immediately after reception. |
Modes: Mode 1 → 8-bit UART (variable baud; asynchronous; T&R do not share common clock; RB8 error checkinga; Timer1)
Mode 2 → 9-bit UART (9th bit programmable + transmitted using TB8b)
Mode 3 → 9-bit (fixed baud; similar to Mode 2; internal clock instead of Timer 1) |
a When SM2 = 1, the receiver checks the stop bit: RB8 = 1 indicates correct data, while RB8 = 0 indicates an error, and no interrupt is generated. |
b When SM2 = 1, the receiver accepts data only if the 9th bit is 1, otherwise the received data is discarded |
The TI flag is not cleared automatically and must be cleared by software in the ISR.
RI is also not automatically cleared
T → Transmitter
R → Receiver
Interrupt Structure
Interrupt halts normal execution → jumps to ISR |
Requires GIE (and PEIE) enabled |
Peripheral sets interrupt flag (xxIF) - latched high and must be cleared in ISR |
Each peripheral has its own interrupt enable bit (INTCON, PIE1, PIE2, PIE3). |
On interrupt - CPU saves context, clears GIE, PC is pushed to stack |
Execution jumps to interrupt vector address (0004H). |
ISR identifies, executes, clears flag |
ends with RETFIE instruction |
RETFIE - GIE re-enabled; restores context, resumes program |
ISR - Interrupt Service Routine
GIE - Global Interrupt Enable
PEIE - Peripheral Interrupt Enable
xxIF - interrupt request flag
PART C
8051 Suitability for Real-Time Applications |
1. Architecture (8051) |
Harvard architecture → faster execution |
On-chip peripherals (timers, I/O, serial) |
Bit-addressable memory → precise control |
Deterministic operation → predictable timing |
2. Instruction Set |
Simple, control-oriented instructions |
Bit-level ops → SETB, CLR, JB, JNB |
Fast execution (1–2 cycles) |
Efficient for real-time control logic |
3. Interrupt Structure |
Multiple interrupt sources (external, timer, serial) |
Priority-based handling |
Fast ISR execution → quick response |
Improves real-time performance |
|
