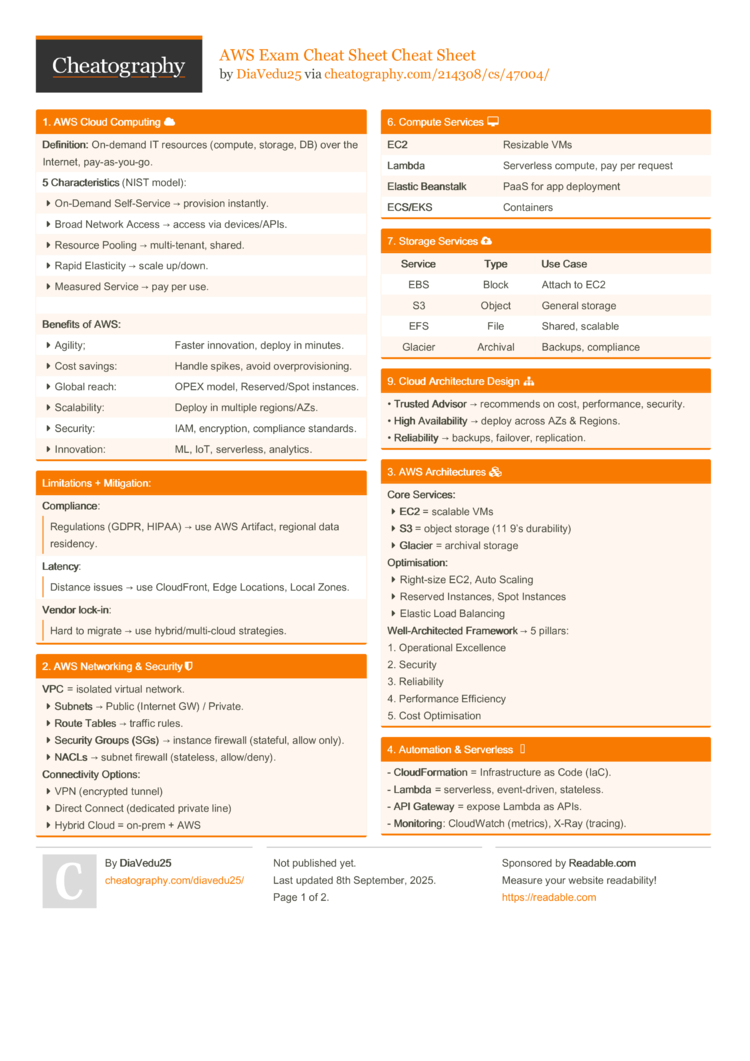

1. AWS Cloud Computing
Definition: On-demand IT resources (compute, storage, DB) over the Internet, pay-as-you-go. |
5 Characteristics (NIST model): |
On-Demand Self-Service → provision instantly. |
Broad Network Access → access via devices/APIs. |
Resource Pooling → multi-tenant, shared. |
Rapid Elasticity → scale up/down. |
Measured Service → pay per use. |
| |
Benefits of AWS: |
Agility; |
Faster innovation, deploy in minutes. |
Cost savings: |
Handle spikes, avoid overprovisioning. |
Global reach: |
OPEX model, Reserved/Spot instances. |
Scalability: |
Deploy in multiple regions/AZs. |
Security: |
IAM, encryption, compliance standards. |
Innovation: |
ML, IoT, serverless, analytics. |
Limitations + Mitigation:
|
Compliance: Regulations (GDPR, HIPAA) → use AWS Artifact, regional data residency.
|
|
Latency: Distance issues → use CloudFront, Edge Locations, Local Zones.
|
|
Vendor lock-in: Hard to migrate → use hybrid/multi-cloud strategies.
|
2. AWS Networking & Security
VPC = isolated virtual network.
Subnets → Public (Internet GW) / Private.
Route Tables → traffic rules.
Security Groups (SGs) → instance firewall (stateful, allow only).
NACLs → subnet firewall (stateless, allow/deny).
Connectivity Options:
VPN (encrypted tunnel)
Direct Connect (dedicated private line)
Hybrid Cloud = on-prem + AWS |
6. Compute Services
EC2 |
Resizable VMs |
Lambda |
Serverless compute, pay per request |
Elastic Beanstalk |
PaaS for app deployment |
ECS/EKS |
Containers |
7. Storage Services
Service |
Type |
Use Case |
EBS |
Block |
Attach to EC2 |
S3 |
Object |
General storage |
EFS |
File |
Shared, scalable |
Glacier |
Archival |
Backups, compliance |
9. Cloud Architecture Design
• Trusted Advisor → recommends on cost, performance, security.
• High Availability → deploy across AZs & Regions.
• Reliability → backups, failover, replication. |
|
|
3. AWS Architectures
Core Services:
EC2 = scalable VMs
S3 = object storage (11 9’s durability)
Glacier = archival storage
Optimisation:
Right-size EC2, Auto Scaling
Reserved Instances, Spot Instances
Elastic Load Balancing
Well-Architected Framework → 5 pillars:
1. Operational Excellence
2. Security
3. Reliability
4. Performance Efficiency
5. Cost Optimisation |
4. Automation & Serverless
- CloudFormation = Infrastructure as Code (IaC).
- Lambda = serverless, event-driven, stateless.
- API Gateway = expose Lambda as APIs.
- Monitoring: CloudWatch (metrics), X-Ray (tracing). |
5. Identity & Access Management (IAM)
IAM Components: |
Users, Groups, Roles, Policies. |
Risks: |
*:*
permissions, long-lived keys. |
Mitigation: |
IAM Access Analyser, CloudTrail audits. |
Best Practices: |
MFA, Rotate keys, Avoid root account, Cross-account roles |
| |
Principle: Least Privilege (grant minimum required). |
8. Database Services
•RDS (SQL, managed) → backups, scaling.
•Aurora → high-perf managed DB.
•DynamoDB → NoSQL, serverless, key-value.
•Redshift → analytics/data warehouse.
SQL vs NoSQL:
•SQL = structured, ACID, relational.
•NoSQL = schema-less, horizontal scaling. |
10. Scalability & Monitoring
• Elastic Load Balancing (ELB) → distributes traffic.
• Auto Scaling → adds/removes EC2 instances.
• CloudWatch → monitors metrics in real-time. |
|
