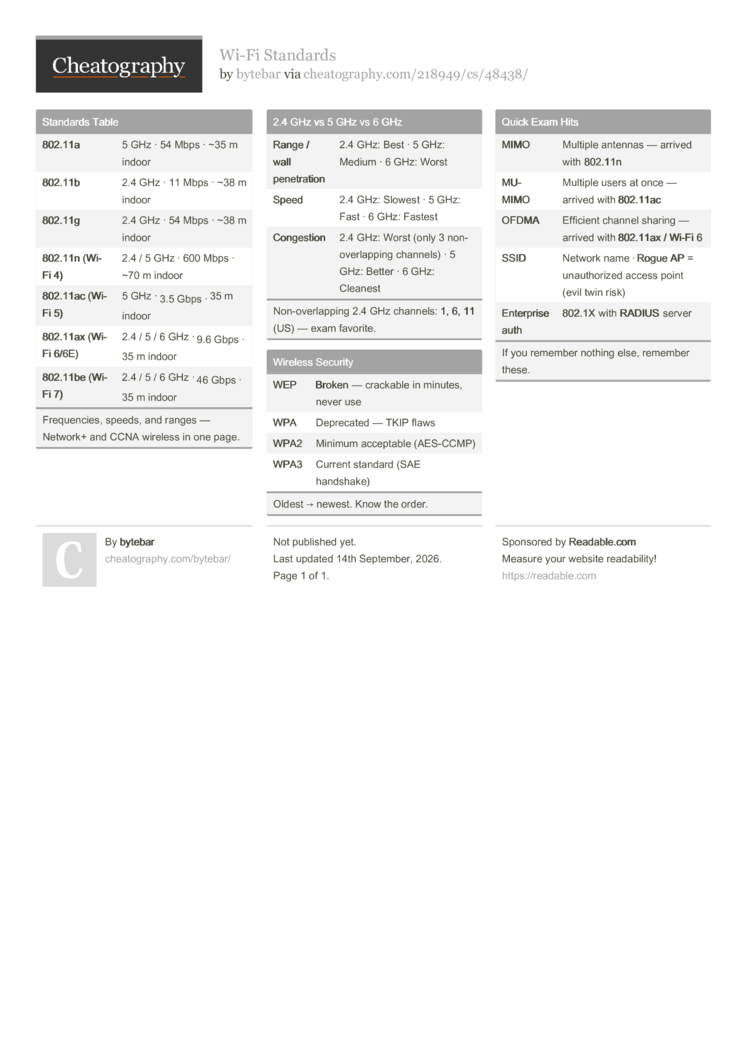

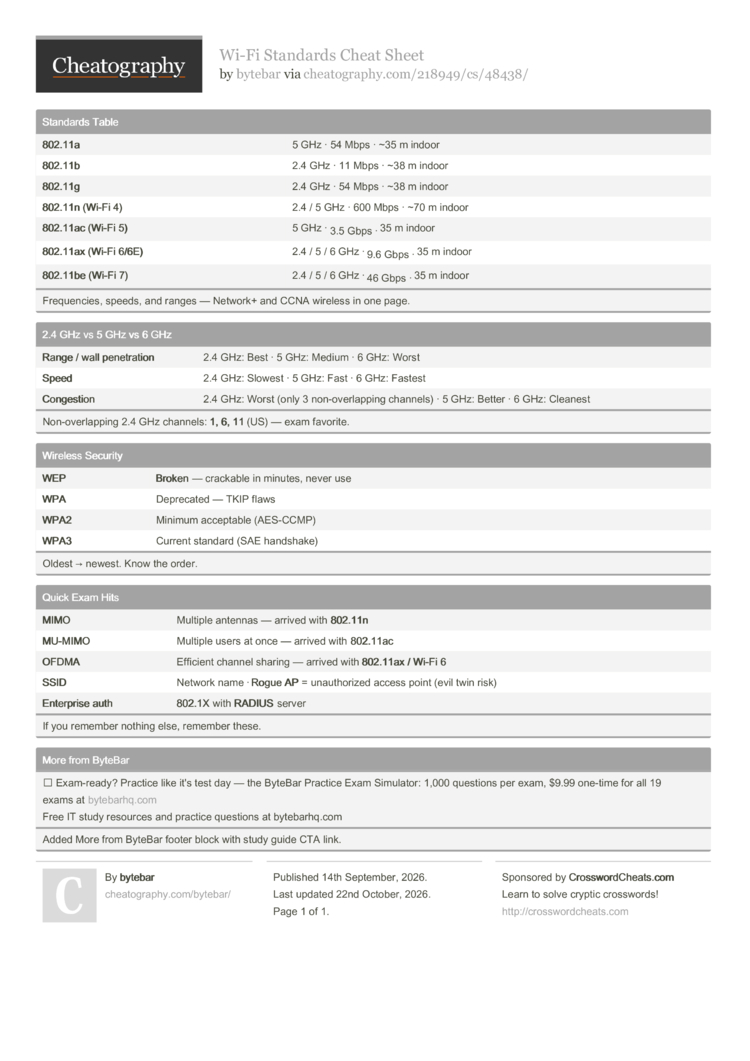

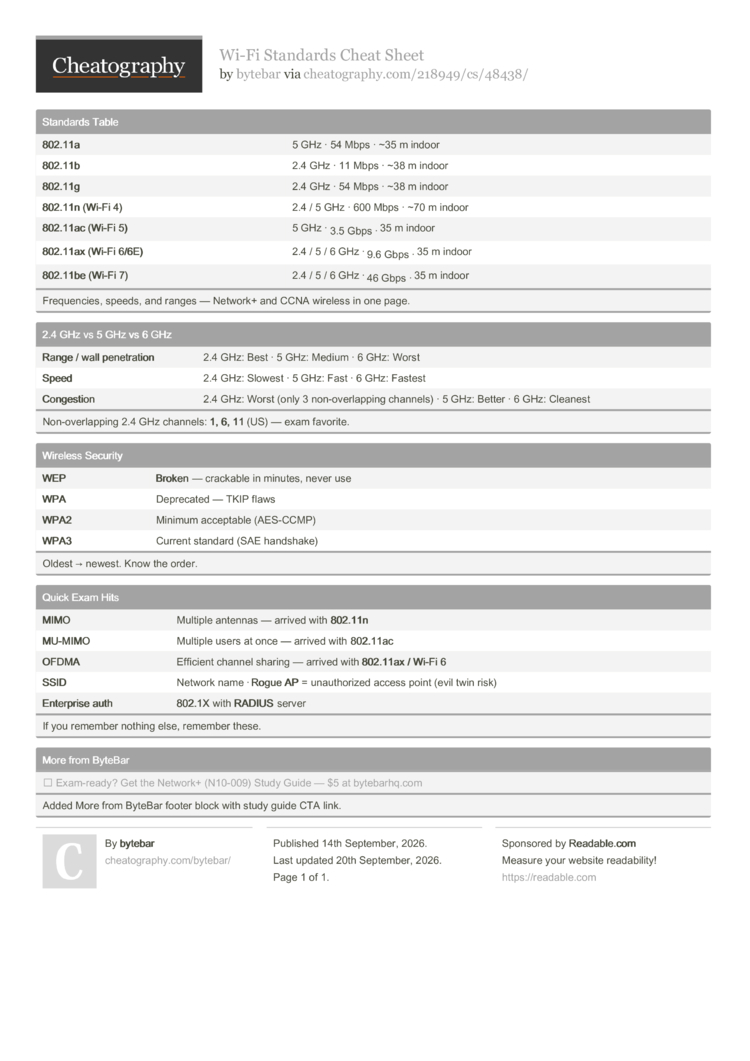

Wi-Fi Standards Cheat Sheet by

Every major Wi-Fi standard from 802.11a to Wi-Fi 7 (802.11be): frequencies, max speeds, channel widths, and key features in one glanceable reference. Perfect for Network+ wireless topics and real-world network planning. More free study resources at bytebarhq.com.

Standards Table

802.11a
5 GHz · 54 Mbps · ~35 m indoor
802.11b
2.4 GHz · 11 Mbps · ~38 m indoor
802.11g
2.4 GHz · 54 Mbps · ~38 m indoor
802.11n (Wi-Fi 4)
2.4 / 5 GHz · 600 Mbps · ~70 m indoor
802.11ac (Wi-Fi 5)
5 GHz · 3.5 Gbps · 35 m indoor
802.11ax (Wi-Fi 6/6E)
2.4 / 5 / 6 GHz · 9.6 Gbps · 35 m indoor
802.11be (Wi-Fi 7)
2.4 / 5 / 6 GHz · 46 Gbps · 35 m indoor
Freque­ncies, speeds, and ranges — Network+ and CCNA wireless in one page.

2.4 GHz vs 5 GHz vs 6 GHz

Range / wall penetr­ation
2.4 GHz: Best · 5 GHz: Medium · 6 GHz: Worst
Speed
2.4 GHz: Slowest · 5 GHz: Fast · 6 GHz: Fastest
Congestion
2.4 GHz: Worst (only 3 non-ov­erl­apping channels) · 5 GHz: Better · 6 GHz: Cleanest
Non-ov­erl­apping 2.4 GHz channels: 1, 6, 11 (US) — exam favorite.

Wireless Security

WEP
Broken — crackable in minutes, never use
WPA
Deprecated — TKIP flaws
WPA2
Minimum acceptable (AES-CCMP)
WPA3
Current standard (SAE handshake)
Oldest → newest. Know the order.

Quick Exam Hits

MIMO
Multiple antennas — arrived with 802.11n
MU-MIMO
Multiple users at once — arrived with 802.11ac
OFDMA
Efficient channel sharing — arrived with 802.11ax / Wi-Fi 6
SSID
Network name · Rogue AP = unauth­orized access point (evil twin risk)
Enterprise auth
802.1X with RADIUS server
If you remember nothing else, remember these.
