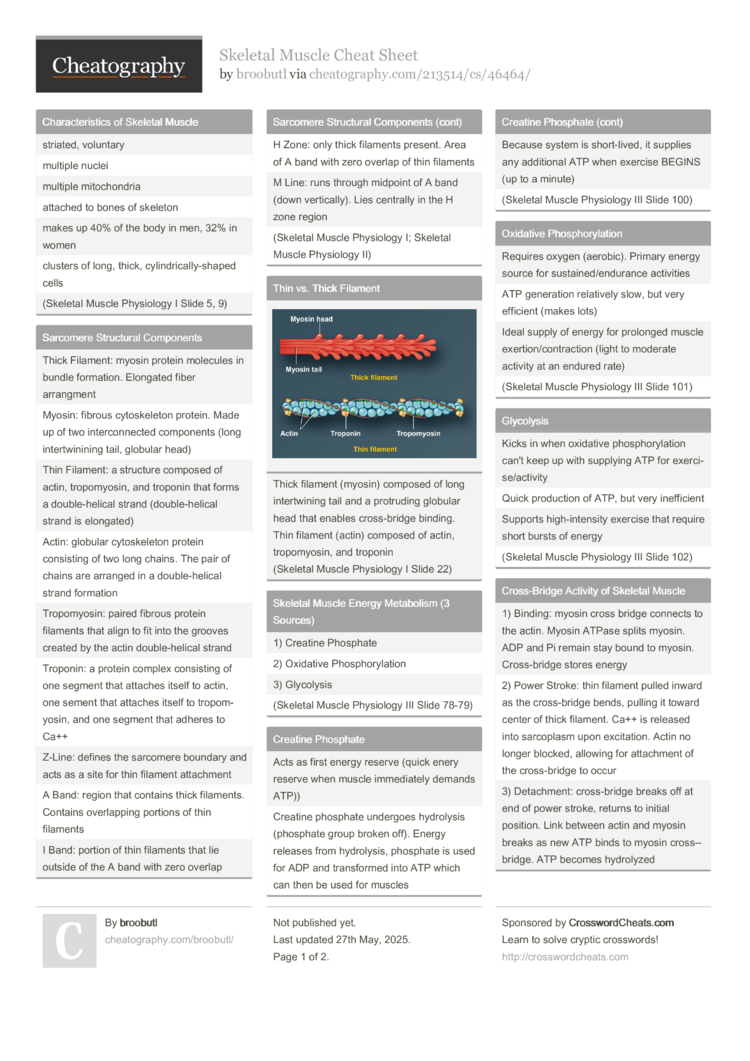

Skeletal Muscle Cheat Sheet (DRAFT) by

All About Skeletal Muscle

This is a draft cheat sheet. It is a work in progress and is not finished yet.

Charac­ter­istics of Skeletal Muscle

striated, voluntary
multiple nuclei
multiple mitoch­ondria
attached to bones of skeleton
makes up 40% of the body in men, 32% in women
clusters of long, thick, cylind­ric­all­y-s­haped cells
(Skeletal Muscle Physiology I Slide 5, 9)

Sarcomere Structural Components

Thick Filament: myosin protein molecules in bundle formation. Elongated fiber arrangment
Myosin: fibrous cytosk­eleton protein. Made up of two interc­onn­ected components (long intert­win­ining tail, globular head)
Thin Filament: a structure composed of actin, tropom­yosin, and troponin that forms a double­-he­lical strand (doubl­e-h­elical strand is elongated)
Actin: globular cytosk­eleton protein consisting of two long chains. The pair of chains are arranged in a double­-he­lical strand formation
Tropom­yosin: paired fibrous protein filaments that align to fit into the grooves created by the actin double­-he­lical strand
Troponin: a protein complex consisting of one segment that attaches itself to actin, one sement that attaches itself to tropom­yosin, and one segment that adheres to Ca++
Z-Line: defines the sarcomere boundary and acts as a site for thin filament attachment
A Band: region that contains thick filaments. Contains overla­pping portions of thin filaments
I Band: portion of thin filaments that lie outside of the A band with zero overlap
H Zone: only thick filaments present. Area of A band with zero overlap of thin filaments
M Line: runs through midpoint of A band (down vertic­ally). Lies centrally in the H zone region
(Skeletal Muscle Physiology I; Skeletal Muscle Physiology II)

Thin vs. Thick Filament

Thick filament (myosin) composed of long intert­wining tail and a protruding globular head that enables cross-­bridge binding. Thin filament (actin) composed of actin, tropom­yosin, and troponin
(Skeletal Muscle Physiology I Slide 22)

Skeletal Muscle Energy Metabolism (3 Sources)

1) Creatine Phosphate
2) Oxidative Phosph­ory­lation
3) Glycolysis
(Skeletal Muscle Physiology III Slide 78-79)

Creatine Phosphate

Acts as first energy reserve (quick enery reserve when muscle immedi­ately demands ATP))
Creatine phosphate undergoes hydrolysis (phosphate group broken off). Energy releases from hydrol­ysis, phosphate is used for ADP and transf­ormed into ATP which can then be used for muscles
Because system is short-­lived, it supplies any additional ATP when exercise BEGINS (up to a minute)
(Skeletal Muscle Physiology III Slide 100)

Oxidative Phosph­ory­lation

Requires oxygen (aerobic). Primary energy source for sustai­ned­/en­durance activities
ATP generation relatively slow, but very efficient (makes lots)
Ideal supply of energy for prolonged muscle exerti­on/­con­tra­ction (light to moderate activity at an endured rate)
(Skeletal Muscle Physiology III Slide 101)

Glycolysis

Kicks in when oxidative phosph­ory­lation can't keep up with supplying ATP for exerci­se/­act­ivity
Quick production of ATP, but very ineffi­cient
Supports high-i­nte­nsity exercise that require short bursts of energy
(Skeletal Muscle Physiology III Slide 102)


Cross-­Bridge Activity of Skeletal Muscle

1) Binding: myosin cross bridge connects to the actin. Myosin ATPase splits myosin. ADP and Pi remain stay bound to myosin. Cross-­bridge stores energy
2) Power Stroke: thin filament drawn in toward the middle as the cross-­bridge bends, pulling it toward center of thick filament. Ca++ is released into sarcoplasm upon excita­tion. Actin no longer blocked, allowing for attachment of the cross-­bridge to occur
3) Detach­ment: cross-­bridge breaks off once the end of power stroke has been reached, and then returns to initial position. Link between actin and myosin breaks as new ATP binds to myosin cross-­bridge. ATP becomes hydrolyzed
4) Binding: cross bridge binds to further actin molecule (not from exact same spot), then the cycle repeats
(Skeletal Muscle Physiology I Slide 26; Skeletal Muscle Physiology II Slide 49)

Cross-­Bridge Effects on Muscle Contra­ction

Comparison of cross bridge activity effects on a relaxed muscle versus contracted muscle
(Skeletal Muscle Physiology I Slide 27)

Cross-­Bridge Effects on Muscle Contra­ction

1) Sarcomere shortens
2) H zone shortens
3) I band shortens
4) A band remains the same width
5) Individual actin and myosin fibers maintain the same length
(Skeletal Muscle Physiology I Slide 27)

Role of ATP in Skeletal Muscle Contra­ction

1) Myosin ATPase splits ATP (energy stored in cross bridge)
2) Excitation allows for release of Ca++, thus relieving actin of any inhibition
3) Power stroke occurs on cross-­bridge, releasing ADP and Pi
4) Fresh ATP becomes bound to myosin, breaking the link between myosin and actin
(Skeletal Muscle Physiology II Slide 58)


Excita­tio­n-C­ont­raction Coupling

1) Axon releases ACh (axon of motor neuron). ACh binds to motor end plate receptors
2) ACh trigger action potential (caused by binding of ACh to recept­ors). End plate potential diffuses across membrane, down T-tubules
3) Sarcop­lasmic retitculum releases Ca++ (occurs AFTER stimul­ation of the action potential)
4) Tropom­yosin moves to side (out of the way) as Ca++ binds to troponin (on actin filame­nts). Cross-­bridge binding site on actin becomes exposed
5) Myosin cross-­bridges bind to actin, causing filaments to pull inward (bending). Bending of actin filaments is powered via ATP
6) Sarcop­lasmic reticulum reabsorbs Ca++ (when action potentials are no longer fired)
7) Tropom­yosin re-covers cross-­bridge binding sites on actin (return to original position)
(Skeletal Muscle Physiology II Slide 57)

Skeletal Muscle Types

1) Slow Oxidative (type I)
2) Fast Oxidative (type IIa)
3) Fast Glycolytic (type IIb)
(Skeletal Muscle Physiology III Slide 82)

Slow Oxidative (type I)

Slow contra­ctions
Heavy reliance on oxidative phosph­ory­lation for ATP
Abundance of mitoch­ondria, high blood supply, high myoglobin levels
(Skeletal Muscle Physiology III Slide 82)

Fast Oxidative (type IIa)

Rapid, relatively efficient contra­ction
Predom­inantly fueled via oxidative phosph­ory­lat­ion­/ae­robic energy processes
Abundance of mitoch­ondria, high blood supply, rich in myoglobin
(Skeletal Muscle Physiology III Slide 82)

Fast Glycolytic (type IIb)

Very rapid, quick contra­ction (fastest of the three types)
Heavy reliance on glycolysis as a source of ATP
Low abundance of mitoch­ondria, lower blood supply, lower myoglobin levels, but rich in muscle glycogen
(Skeletal Muscle Physiology III Slide 82)

Works Cited

Skeletal Muscle Physiology I (A. Gomes)
Skeletal Muscle Physiology II (A. Gomes)
Skeletal Muscle Physiology III (A. Gomes)
