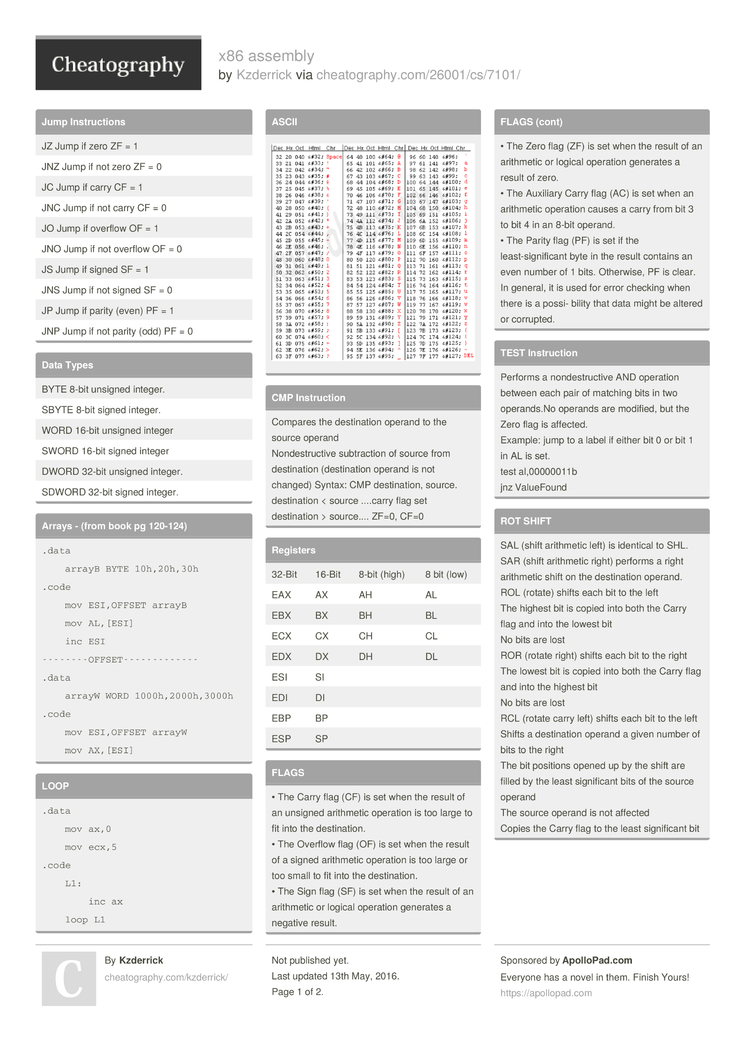

Jump Instructions
JZ Jump if zero ZF = 1 |
JNZ Jump if not zero ZF = 0 |
JC Jump if carry CF = 1 |
JNC Jump if not carry CF = 0 |
JO Jump if overflow OF = 1 |
JNO Jump if not overflow OF = 0 |
JS Jump if signed SF = 1 |
JNS Jump if not signed SF = 0 |
JP Jump if parity (even) PF = 1 |
JNP Jump if not parity (odd) PF = 0 |
Data Types
BYTE 8-bit unsigned integer. |
SBYTE 8-bit signed integer. |
WORD 16-bit unsigned integer |
SWORD 16-bit signed integer |
DWORD 32-bit unsigned integer. |
SDWORD 32-bit signed integer. |
Arrays - (from book pg 120-124)
.data
arrayB BYTE 10h,20h,30h
.code
mov ESI,OFFSET arrayB
mov AL,[ESI]
inc ESI
--------OFFSET-------------
.data
arrayW WORD 1000h,2000h,3000h
.code
mov ESI,OFFSET arrayW
mov AX,[ESI]
|
LOOP
.data
mov ax,0
mov ecx,5
.code
L1:
inc ax
loop L1
|
CMP Instruction
Compares the destination operand to the source operand
Nondestructive subtraction of source from destination (destination operand is not changed) Syntax: CMP destination, source.
destination < source ....carry flag set
destination > source.... ZF=0, CF=0 |
|
|
Registers
32-Bit |
16-Bit |
8-bit (high) |
8 bit (low) |
EAX |
AX |
AH |
AL |
EBX |
BX |
BH |
BL |
ECX |
CX |
CH |
CL |
EDX |
DX |
DH |
DL |
ESI |
SI |
EDI |
DI |
EBP |
BP |
ESP |
SP |
FLAGS
• The Carry flag (CF) is set when the result of an unsigned arithmetic operation is too large to fit into the destination.
• The Overflow flag (OF) is set when the result of a signed arithmetic operation is too large or too small to fit into the destination.
• The Sign flag (SF) is set when the result of an arithmetic or logical operation generates a negative result.
• The Zero flag (ZF) is set when the result of an arithmetic or logical operation generates a result of zero.
• The Auxiliary Carry flag (AC) is set when an arithmetic operation causes a carry from bit 3 to bit 4 in an 8-bit operand.
• The Parity flag (PF) is set if the least-significant byte in the result contains an even number of 1 bits. Otherwise, PF is clear. In general, it is used for error checking when there is a possi- bility that data might be altered or corrupted. |
TEST Instruction
Performs a nondestructive AND operation between each pair of matching bits in two operands.No operands are modified, but the Zero flag is affected.
Example: jump to a label if either bit 0 or bit 1 in AL is set.
test al,00000011b
jnz ValueFound |
ROT SHIFT
SAL (shift arithmetic left) is identical to SHL.
SAR (shift arithmetic right) performs a right arithmetic shift on the destination operand.
ROL (rotate) shifts each bit to the left
The highest bit is copied into both the Carry flag and into the lowest bit
No bits are lost
ROR (rotate right) shifts each bit to the right
The lowest bit is copied into both the Carry flag and into the highest bit
No bits are lost
RCL (rotate carry left) shifts each bit to the left
Shifts a destination operand a given number of bits to the right
The bit positions opened up by the shift are filled by the least significant bits of the source operand
The source operand is not affected
Copies the Carry flag to the least significant bit
Copies the most significant bit to the Carry flagRCR (rotate carry right) shifts each bit to the right
Copies the Carry flag to the most significant bit
Copies the least significant bit to the Carry flag
Shifts a destination operand a given number of bits to the left
The bit positions opened up by the shift are filled by the most significant bits of the source operand
The source operand is not affected
Syntax:
SHLD destination, source, count |
OR, XOR, AND, NOT
OR destination, source. 0,0=0. 0,1=1, 1,0=1. 1,1 = 1
XOR destination, source. 0,0=0. 0,1=1, 1,0=1. 1,1 = 0
NOT destination...invert all
AND destination, source 0,0=0. 0,1=0, 1,0=0. 1,1 = 1 |
|
|
Procedures
SumOf PROC
add EAX, EBX
add EAX, ECX
ret
SumOf ENDP
END main
|
Irvine 32 lib procedures
DumpMemm
mov ESI,OFFSET array
mov ECX,LENGTHOF array
mov EBX,TYPE array
call DumpMem
ReadChar
char BYTE ?
.code
call ReadChar
mov char, AL
Random32
call Random32
mov randVal, EAX
ReadDec ;same for dec, hex, int
intVal DWORD ?
.code
call ReadDec
mov intVal,eax
ReadString
.data
buffer BYTE 21 DUP(0) ; input buffer
byteCount DWORD ? ; holds counter
.code
mov EDX,OFFSET buffer ; point to the buffer
mov ECX,SIZEOF buffer ; specify max characters
call ReadString ; input the string
mov byteCount, EAX ; number of characters
WriteChar
mov AL, 'A'
call WriteChar
WriteDec,hex,int
mov eax,295
call WriteDec
WriteString
.data
prompt BYTE "Enter your name: ",0 .code
mov edx,OFFSET prompt
call WriteString
|
PUSHAD POPAD
The PUSHAD instruction pushes all of the 32-bit general-purpose registers on the stack in the following order: EAX, ECX, EDX, EBX, ESP (value before executing PUSHAD), EBP, ESI, and EDI.The POPAD instruction pops the same registers off the stack in reverse order. |
MUL IMUL
In 32-bit mode, MUL (unsigned multiply) instruction multiplies an 8-, 16-, or 32-bit operand by either AL, AX, or EAX
.data
val1 WORD 2000h
val2 WORD 100h
.code
mov ax,val1
mul val2 ; DX:AX = 00200000h, CF=1
IMUL (signed integer multiply ) multiplies an 8-, 16-, or 32-bit signed operand by either AL, AX, or EAX
Preserves the sign of the product by sign-extending it into the upper half of the destination register
mov eax,4823424
mov ebx,-423
imul ebx ; EDX:EAX = FFFFFFFF86635D80h, OF=0
|
|
