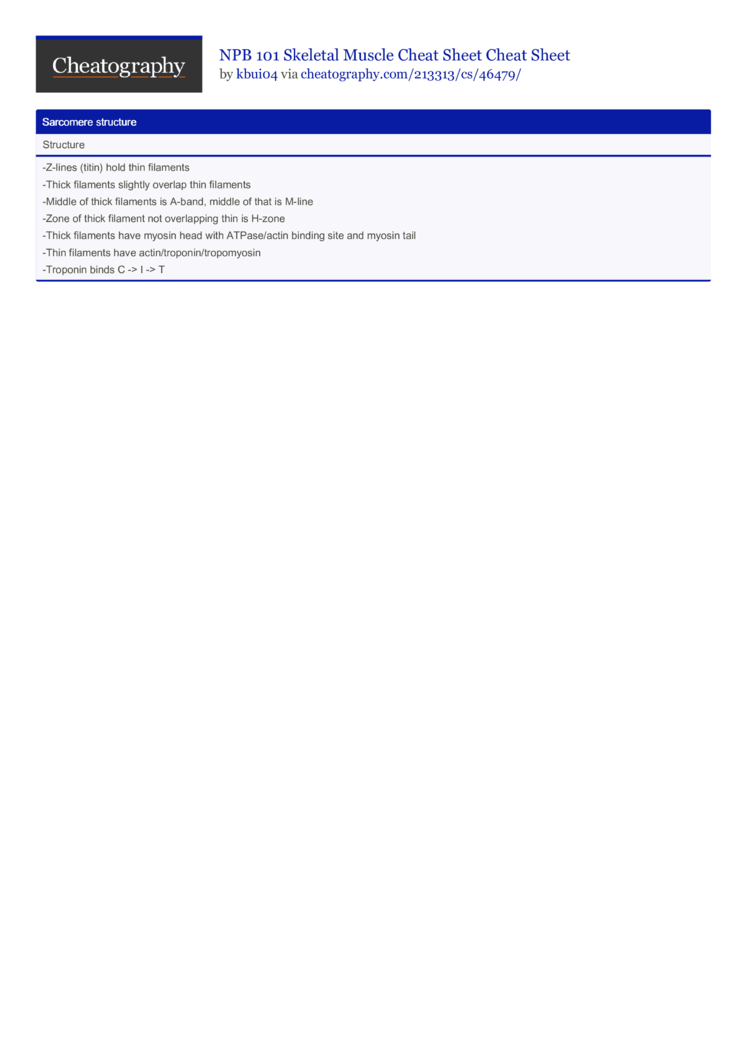

NPB 101 Skeletal Muscle Cheat Sheet Cheat Sheet (DRAFT) by

NPB 101 Cheat Sheet for Skeletal Muscle

This is a draft cheat sheet. It is a work in progress and is not finished yet.

Sarcomere structure

Structure
-Z-lines (titin) hold thin filaments
-Thick filaments slightly overlap thin filaments
-Middle of thick filaments is A-band, middle of that is M-line
-Zone of thick filament not overla­pping thin is H-zone
-Thick filaments have myosin head with ATPase­/actin binding site and myosin tail
-Thin filaments have actin/­tro­pon­in/­tro­pom­yosin
-Troponin binds C -> I -> T

Skeletal Muscle

What is Skeletal Muscle?
-In opposition to cardiac and smooth
-Striated and voluntary (cardiac is striat­ed/­inv­olu­ntary while smooth is unstri­ate­d/i­nvo­lun­tary)
-50% of body strength
-40% body weight in men
-32% body weight in women
-Allows us to purpos­efully move external objects around
-Squeezes internal hollow organs
-Empties certain organs to external enviro­nment

Cross-­Bridge Cycle

Cycle
-ATP binds to myosin head ATPase, breaking myosin­/actin filament cross bridge
-ATPase splits ATP
-Cross­-bridge forms in presence of Ca2+ from troponin binding and forming tropom­yosin, will not form if no Ca2+
-Pi released to form stronger cross bridge between actin/­myosin
-ATP binding again drives power stroke

Calcium transport

Transport
-T-tubules are tubes in the SR, "­inv­agi­nat­ion­s", transports Ca^2+
-SR is modified ER with network of T-tubules where Ca^2+ is transp­ort­ed/­stored
-Lateral sacs are parts of SR that touch T-tubules
-Foot proteins (ryanodine receptors) span the gap between lateral sacs and T-tubules, modify permea­bility of t-tubules
-Dihyd­rop­yridine receptors are receptors in T-tubule membrane that change foot protein permea­bility to Ca^2+

Calcium Transport

Motor Unit

Motor Unit
-One motor unit multiple muscle fibers, but muscle fibers only have one motor neuron
-One motor neuron activated, triggers all innervated fibers
-Weak simult­aneous contra­ction of whole muscle if one motor neuron triggered, need recrui­tment for stronger contra­ction
-Single motor unit may have 1.5-2k muscle fibers if strong
-Recru­itment large increase in tension
-Strength =/= precision

Muscle tension

Tension
Tension opposes load
-Single action potential is twitch
-Tension develops from frequency, length of fiber, extent of fatigue, thickness of fiber
-Twitch summation increases tension from elevation of cytosolic calcium from repetitive stimul­ation, duration of action potential shorter than twitch
-Tetanus smooth sustained contra­ction of maximal strength, 3-4x stronger than twitch
-Optimal muscle length for maximal tension

Muscle metabolism

Metabolism
-Creatine, oxidative phosph­ory­lation, glycolysis
-Type 1 is slow contra­ction and uses oxidative phosph­ory­lation
-Type 2a is fast contra­ction, still ox.
-Type 2b is very fast and uses glycol­ysis, high in glycogen
-Fatigue is CNS no longer activating motor neurons
-Deplete glycogen reserves and inorganic phosphate makes fatigue
-Excess post-e­xercise oxygen consum­ption elevated is O2 uptake after exercise


Charac­ter­istics

Charac­ter­istics of one fiber
-Multiple mitoch­ondria
-Multi­nuc­leated
-T tubules
-Myofi­brils and sarcomeres
-Sarco­lemma (plasma membrane)
Structure from largest to smallest goes muscle fiber, myofibril, A/I bands, sarcomere, Z/M lines and H zone, thick (myosin) filaments, thin (actin) filaments
-Sarco­plasm (cytop­lasm)
-Sarco­plasmic reticulum (smooth ER)

Structure


-Myofi­brils are elongated, cylind­rical contra­ctile elements made of sarcomeres (smallest contra­ctile unit)
-Each sarcomere goes from Z-line to Z-line
-Made of partially overla­pping thick and thin filaments
-Each thick filament has 6 adjacent thin filaments
-Each thin filament has 3 adjacent thick filaments
-T-tubules extend membrane throughout muscle cell
-Sarco­plasmic reticulum (SR) surrounds T-tubules and myofibrils

Structure of a muscle fiber

Structure
-Myofi­brils are elongated, cylind­rical contra­ctile elements made of sarcomeres (smallest contra­ctile unit)
-Each sarcomere goes from Z-line to Z-line
-Made of partially overla­pping thick and thin filaments
-Each thick filament has 6 adjacent thin filaments
-Each thin filament has 3 adjacent thick filaments
-T-tubules extend membrane throughout muscle cell
-Sarco­plasmic reticulum (SR) surrounds T-tubules and myofibrils

Neurom­uscular Junction

NMJ sequence (1-4)
1. Action potential enters into terminal button
2. Depola­riz­ation of button opens voltag­e-gated Ca^2+ channels
3. Ca^2+ ions causes vesicles of acetyl­choline (Ach) to fuse with the plasma membrane
4. Ach vesicles transp­orted across synaptic cleft which causes binding at motor end plate

Neurom­uscular junction

NMJ sequence (5-7)
5. Ach receptor binding opens Na+ channels which depola­rizes the end plate
6. Depola­rizing current flows to adjacent membrane with voltage gated Na+ channels
7. Ach degraded by acetyl­cho­lin­estrase (Ach-e­ste­rase), termin­ating Ach action

Cross-­Bridge conseq­uences

Conseq­uences
Binding -> power stroke -> detachment -> binding
1. Sarcomere shortens
2. H-zone shortens
3. I-band shortens
4. A-bands stay the same
5. Actin/­myosin fibers stay the same

Sarcomere
