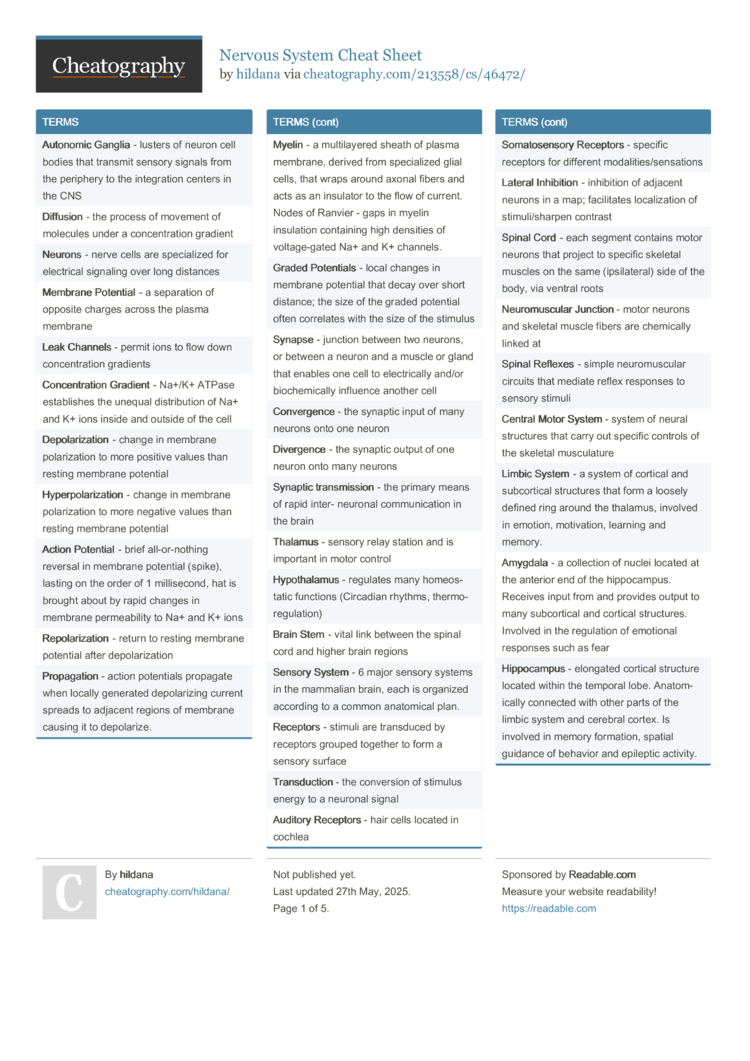

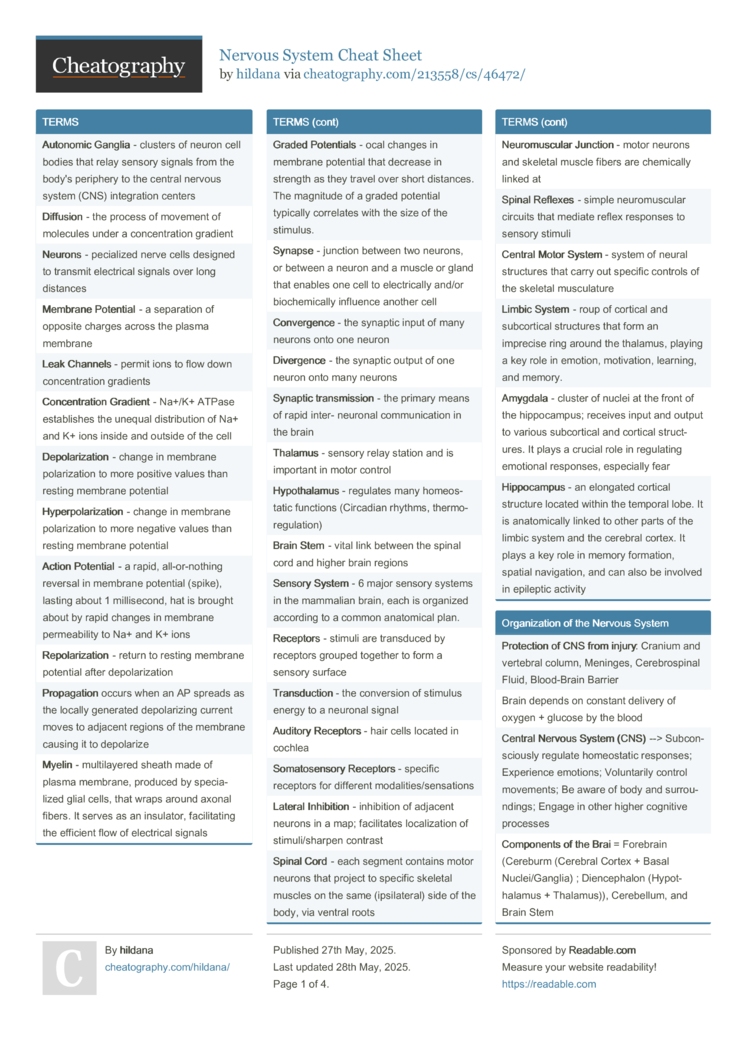

Nervous System Cheat Sheet by

Cheat Sheet of NPB 101 Nervous System

TERMS

Autonomic Ganglia - lusters of neuron cell bodies that transmit sensory signals from the periphery to the integr­ation centers in the CNS
Diffusion - the process of movement of molecules under a concen­tration gradient
Neurons - nerve cells are specia­lized for electrical signaling over long distances
Membrane Potential - a separation of opposite charges across the plasma membrane
Leak Channels - permit ions to flow down concen­tration gradients
Concen­tration Gradient - Na+/K+ ATPase establ­ishes the unequal distri­bution of Na+ and K+ ions inside and outside of the cell
Depola­riz­ation - change in membrane polari­zation to more positive values than resting membrane potential
Hyperp­ola­riz­ation - change in membrane polari­zation to more negative values than resting membrane potential
Action Potential - brief all-or­-no­thing reversal in membrane potential (spike), lasting on the order of 1 millis­econd, hat is brought about by rapid changes in membrane permea­bility to Na+ and K+ ions
Repola­riz­ation - return to resting membrane potential after depola­riz­ation
Propag­ation - action potentials propagate when locally generated depola­rizing current spreads to adjacent regions of membrane causing it to depola­rize.
Myelin - a multil­ayered sheath of plasma membrane, derived from specia­lized glial cells, that wraps around axonal fibers and acts as an insulator to the flow of current. Nodes of Ranvier - gaps in myelin insulation containing high densities of voltag­e-gated Na+ and K+ channels.
Graded Potentials - local changes in membrane potential that decay over short distance; the size of the graded potential often correlates with the size of the stimulus
Synapse - junction between two neurons, or between a neuron and a muscle or gland that enables one cell to electr­ically and/or bioche­mically influence another cell
Conver­gence - the synaptic input of many neurons onto one neuron
Divergence - the synaptic output of one neuron onto many neurons
Synaptic transm­ission - the primary means of rapid inter- neuronal commun­ication in the brain
Thalamus - sensory relay station and is important in motor control
Hypoth­alamus - regulates many homeos­tatic functions (Circadian rhythms, thermo­reg­ula­tion)
Brain Stem - vital link between the spinal cord and higher brain regions
Sensory System - 6 major sensory systems in the mammalian brain, each is organized according to a common anatomical plan.
Receptors - stimuli are transduced by receptors grouped together to form a sensory surface
Transd­uction - the conversion of stimulus energy to a neuronal signal
Auditory Receptors - hair cells located in cochlea
Somato­sensory Receptors - specific receptors for different modali­tie­s/s­ens­ations
Lateral Inhibition - inhibition of adjacent neurons in a map; facili­tates locali­zation of stimul­i/s­harpen contrast
Spinal Cord - each segment contains motor neurons that project to specific skeletal muscles on the same (ipsil­ateral) side of the body, via ventral roots
Neurom­uscular Junction - motor neurons and skeletal muscle fibers are chemically linked at
Spinal Reflexes - simple neurom­uscular circuits that mediate reflex responses to sensory stimuli
Central Motor System - system of neural structures that carry out specific controls of the skeletal muscul­ature
Limbic System - a system of cortical and subcor­tical structures that form a loosely defined ring around the thalamus, involved in emotion, motiva­tion, learning and memory.
Amygdala - a collection of nuclei located at the anterior end of the hippoc­ampus. Receives input from and provides output to many subcor­tical and cortical struct­ures. Involved in the regulation of emotional responses such as fear
Hippoc­ampus - elongated cortical structure located within the temporal lobe. Anatom­ically connected with other parts of the limbic system and cerebral cortex. Is involved in memory formation, spatial guidance of behavior and epileptic activity.

Organi­zation of the Nervous System

Protection of CNS from injury: Cranium and vertebral column, Meninges, Cerebr­ospinal Fluid, Blood-­Brain Barrier
Brain depends on constant delivery of oxygen + glucose by the blood
Central Nervous System (CNS) --> Subcon­sci­ously regulate homeos­tatic responses; Experience emotions; Volunt­arily control movements; Be aware of body and surrou­ndings; Engage in other higher cognitive processes
Components of the Brai = Forebrain (Cereburm (Cerebral Cortex + Basal Nuclei­/Ga­nglia) ; Dience­phalon (Hypot­halamus + Thalam­us)), Cerebe­llum, and Brain Stem
Cerebral Cortex: Organized into layer and functional columns
Frontal Lobe --> Primary Motor Cortex ; Parietal Lobe --> Somato­sensory Cortex ; Occipital Lobe --> Primary Visual Cortex ; Temporal Lobe --> Primary Auditory Cortex
Thalamus = "­Relay statio­n" for prelim­inary processing of sensory input
Hypoth­alamus = collection of specific nuclei + associated fibers that lie beneath thalamus; integr­ating center importnat for homeos­tatic functions
Circadian Clock (24hr Rhythms) --> Suprac­hia­smatic Nucleus (SCN); Body Temper­ature, Sleep-­Wake, Blood Pressure, Hormone Levels
Brain Stem --> consist of midbrain, pons, and medulla.; MOST cranial nerves arise; regulate equili­brium and postural reflexes; cortical alertness; centers that govern sleep

Lobes of Cerebral Cortex

Thalamus + Hypoth­alamus



Diffusion + Membrane Potential

Diffusion Through Membrane --> Net movement due to random collisions between molecules ; Diffusion down a concen­tration Gradient
Rate of Diffusion Depends On: (1) Magnit­ude:↑ concen­tration gradient, ↑ rate of diffusion (2) Permea­bility: ↑perme­abi­lity, ↑rate of diffusion (3) Surface Area: ↑surface area, ↑ rate of diffusion (4) Molecular Weight: ↑ molecular weight, ↓ rate of diffusion (5) Distance: ↑ distance , ↓ rate of diffusion
Nonpolor Molecules (O2, CO2, fatty acids) = Chemical Gradient Small Ions (Na+, K+, Ca2+, Cl-) = Chemical Gradient + Electrical Gradient = electr­och­emical Gradient
Plasma membranes of ALL living cells have a membrane potential (Vm)/polarized electr­ically
Across Membrane, most fluid is electr­ically neutral; separated charges forming a layer along plasma membrane
GREATER the separation of charges across membrane --> LARGER the potential
Equili­brium Potential for K+ --> (1) K+ tends to move out of the cell (2) Outside of the cell becomes more positive (3) Electrical gradient tends to move K+ into the cell (4) Electrical gradient counte­rba­lances concen­tration gradient (5) No further net movement of K+ occurs (6) EK+ = -90mV
Equili­brium Potential for Na+ --> (1) Na+ tends to move into the cell (2) Inside of the cell becomes more positive (3) Electrical gradient tends to move Na+ out of the cell (4) Electrical gradient counte­rba­lances concen­tration gradient (5) No further net movement of Na+ occurs (6) ENa+ = +60mV
Resting Membrane Potential (-70mV): Membrane more permeable to K+ than Na+; Large; Large net diffusion of K+ and Small net diffusion of Na+
Na/K ATPase --> Establ­ishes and maintains concen­tration gradient ; Pumps 3 Na+ OUT of the cell for every 2 K+ pumped INTO the cell = Na+ is higher outside the cell and K+ is higher inside of the cell
Na+ = LOW intrac­ellular concen­tration K+ = HIGH intrac­ellular concen­tration
Resting Potential neither K+ nor Na+ is at equili­brium potentials and remain constant at resting state.

Vision

Sensory Motor Transf­orm­ation (cycle): Brain --> Motor Outputs --> Body --> Sensory Inputs --> Brain
Organi­zation: Receptor --> Relay Nuclei --> Thalamus --> Primary Cerebral Cortex --> Secondary Cerebral Cortex
Retina: photor­ece­ptors, bipolar cells, ganglion cells, horizontal cells, amacrine cells; light passes theough retina before contract with photor­ece­ptors in the back of the eye
Blind Spot = Optic Disc
Macula = Location of Fovea; bipolar and ganglion cell layers are pulled aside so light strikes photor­ece­ptors directly
Photot­ran­sdu­ction --> (1) Light activates rhodop­sin­Rho­dopsin activation causes the cGMP phosph­odi­est­erase activation (3) Rhodopsin activation decreases cGMP, closes cGMP-gated Na+ channel (4) Membrane hyperp­ola­rizes
Photor­ece­ptors: Rods--> sensitive to very low light, LOW acuity + peripheral vision, and do not distin­guish between different wavele­ngths of light; Cones--> sensitive to bright light; HIGH acuity in central field vision (fovea); distin­guish between different wavele­ngths of light
Color Perception --> Blue, Green, and Red Cone
Optics of Eye - lens inverts and focuses the visual stimulus onto the surface of the retina
Thermo­sen­sat­ion­/No­cic­eption --> Prevents us from being burned; influence decisions about enviro­nment and clothing

Auditory

External Ear - pinna, external auditory meatus, tympanic membrane
Middle Ear - tympanic membrane, ossicles, oval window
Inner Ear - oval window, cochlea, vestibular apparatus, round window
Mechan­ograph is a stretch receptor that respond to mechanical pressure or distor­tion; Stretc­h/Open = Depolarize AND Loosen­/Close = Hyperp­olarize
Sound Transd­uction: Sound Waves --> Vibration of Tympanic Membrane --> Vibration of Middle Ear Bones --> Vibration of Oval Window --> Fluid Movement within the Cochlea --> Vibration of Basilar Membrane --> Bending of Hair Cells --> Graded Receptor Potential --> Action Potentials Generated in Auditory Nerve --> Propag­ation to Auditory Cortex
Auditory Discri­min­ation: Pitch discri­min­ation depends on the region of the basilar membrane that vibrates (where) ; Loudness discri­min­ation depends on the amplitude of vibration of the basilar membrane (how much)
Somato­sensory Receptors --> Touch (Mecha­nor­ece­ptors), Pain (Nocic­ept­ors), Temper­ature (Therm­ore­cep­tors), and Propri­oce­ption (Mecha­nor­ece­ptors)
Touch - Tonic Receptor = don't adapt/­adapt slowly and sustain pressure and stretch of the skin ; Phasic Receptor = adapt rapidly, off response, and signal changes in pressure on the skin surface
Receptive Field - each sensory neurons respond to stimulus inform­ation only within a restri­cti­ve/­spe­cific area
Acuity (discr­imi­native ability) INFLUENCED by (1) Density of receptors (2) Receptive Field Size (3) Lateral Inhibition

Higher Brain Functions

Language Areas are areas of cerebral cortex located in the left hemisphere in approx­imately 97% of the population
Wernicke's Area is located ventral and posterior to auditory cortex and receives input from the auditory, visual and somato­sensory cortices. Damage results in a deficit in language compre­hension
Broca's Area is located in the ventral and posterior region of the left frontal lobe and sends output to the motor areas of the cortex. Damage results in a deficit in speech production
PERSON­ALITY --> Prefrontal Associ­ation Areas are located anterior to the premotor regions in the frontal lobe. Receives input and provides output to many areas of the cerebral cortex. Damage results in deficits of planning, person­ality, and social behavior
Phineas Gage had a tamping iron therough his head and most of the front part of his left side of his brain was destroyed. Deficits: (1) socially unacce­ptable behavior (2) Unfocused (3) Lack of planning
Walter Freeman --> "­Ice­-pick loboto­my"; He used a transo­rbital approach to the prefontal cortex using an ice pick and a hammer. Performed under local anesth­esia. The ice pick would perforate skin, subcut­aneous tissue, bone and meninges in a single plunge; and then Freeman would swing it to severe the prefrontal lobe. (later seen as inhumane)
Patient HM - sremoval of hippocamus to treat intrac­table epilepsy --> RESULT: Total Antero­grade Amnesia= couldn't form new long-term memories; slight display of retrograde amnesia= old memories until the age of the accident


Action Potentials

Action Potential (cont'd)

Rising Phase (Depol­ari­zation) = membrane polari­zation more POSITIVE
Voltage gated Na+ Channel --> opens quickly (< .5 ms) in response to depola­riz­ation, allowing Na+ to flow down its electr­och­emical gradient into the cell (rising phase of AP)
Falling Phase (Repol­ari­zation) = return to membrane potential after depola­riz­ation
Voltage gated K+ Channel --> opens more slowly in response to depola­riz­ation, allowing K+ ions to flow out of the cell down their electr­och­emical gradient. (falling phase of AP + after hyperp­ola­riz­ation))
AP Propag­ation--> Contiguous Conduc­tion: propag­ation of action potentials in unmyel­inated fibers by spread of locally generated depola­rizing current to adjacent regions of membrane, causing it to depola­rize; The original active area returns to resting potential, and the new activate area induces an action potential in the next adjacent inactive area. The cycle repeats itself down the length of the axon
Refactory Period -- Absolute Refractory Period: a brief period during a spike ; A second spike cannot be generated Relative Refractory Period : A brief period following a spike ; Capable of opening in response to depola­riz­ation
Refactory Period PREVENT "­Bac­kwa­rd" current flow: Action potential cannot be initiated in a region that has just undergone an action potential ; Refractory period ensures one-way propag­ation of action potentials and limits their frequency
Contiguous Conduction: unmyel­inated fibers; touching, next to in sequence // Saltatory Conduction: myelinated fibers; jumping; propag­ation of AP in myelinated axons by jumping from node to node
Myelin = Axon --> Plasma Membrane --> Myelin Sheath
Nodes of Raniver - gaps in myelin insulation containing high densities of voltag­e-gated Na+ and K+ channels
Schwann Cells (PNS) - myelin­-fo­rming glial cells in the peripheral nervous system
Oligod­end­rocytes (CNS) - myelin­-fo­rming glial cells in the central nervous system
Graded Potentials: occur in varying grades­/de­grees of magnitude; die over short distances; spread by passive current flow
Synapses --> Electrical Synapses: neurons connected directly by gap junctions. Chemical Synapses (most common): chemical messenger transmits inform­ation one way across a space separating the two neurons
Electrical Synapses formed by gap junctions (made up of multiple connexins) permits water-­soluble particles to pass between cells but blocks passage of larger molecules
Chemical Synapses: Presyn­aptic Neurons (Conve­rgence) --> Postsy­naptic Neurons (Diver­gence)
Chemical Synapse --Sequence of Events --> (1) AP propag­ation in presyn­aptic neuron (2) Ca2+ entry into synaptic knob, terminal button (3) Release of neurot­ran­smitter by exocytosis (4) Binding of neurot­ran­smitter to postsy­naptic receptor (5) Opening of specific ion channels in subsyn­aptic membrane
Synaptic Transm­ission = (1) Presyn­aptic axon initiates the signal (2) Neurot­ran­smitter carries the signal across a synapse; binds to postsy­naptic receptors (3) Postsy­naptic (target cell) receives the signal (4) Postsy­naptic targets can be a muscle, gland or another neuron
Excitatory Postsy­naptic Potential (EPSP): most common excitatory neurot­ran­smi­tters are glutamate (Glu) and acetyl­choline (ACh) ; depola­rizing potential that brings Vm towards threshold for generation of an action potential
Inhibitory Postsy­naptic Potential (EPSP): most common inhibitory neurot­ran­smi­tters are gamma-­amino butyric acid (GABA) and glycine (Gly) ; hyperp­ola­rizing potential that brings Vm away from threshold for generation of an action potential
Transm­itter Removal: Degrad­ation enzymatic breakdown, Transport active transport back into the presyn­aptic cell “reuptake, Diffusion the transm­itter simply diffuses away from the synaptic terminal
Transm­itter Release --> Tetanus Toxin (BLOCK); Transm­itter Uptake --> Cocaine, SSRIs (PROLONG); Transm­itter Removal --> insect­icides (PROLONG); Transm­itter Binding --> Curare (BLOCK)

Synaptic Transm­ission (cont'd)

Temporal Summation - the additive effect of PSPs occurring close together in time at the same place (PSP)
Spatial Summation - the additive effect of PSPs occurring together on nearby parts of the same cell
Cancel­lation Summation - EPSP and IPSP cancel each other
Presyn­aptic inhibition - synaptic inhibition of a synaptic terminal causing a decrease in transm­itter release

Motor System

Neurmu­scular Junction: (1) An action potential in a motor neuron is propagated to the terminal (2) This local action potential triggers the opening of voltage- gated Ca2+ channels and the subsequent entry of Ca2+ into the terminal button (3) Ca2+ triggers the release of acetyl­choline (ACh) by exocytosis from a portion of the vesicles (4) ACh diffuses across the space separating the nerve and muscle cells and binds with recept­or-­cha­nnels specific for it on the motor end plate of the muscle cell membrane (5) This binding brings about the opening of these nonspe­cific cation channels, leading to a relatively large movement of Na+ into the muscle cell compared to a smaller movement of K+ outward (6) The result is an end-plate potential. Local current flow occurs between the depola­rized end plate and the adjacent membrane (7) This local current flow opens voltag­e-gated Na+ channels in the adjacent membrane. (8) The resultant Na+ entry reduces the potential to threshold, initiating an action potential, which is propagated throughout the muscle fiber (9) ACh is subseq­uently destroyed by acetyl­cho­lin­est­erase, an enzyme located on the motor end-plate membrane, termin­ating the muscle cell’s response
Acetyl­choline (ACh) – neurot­ran­smitter used by motorn­eurons; ACh increases the membrane permea­bility to Na+ leading to an EPSP called the end-pl­ate­-po­tential (EPP) ; Acetyl­cho­lin­est­erase (AChE) – enzyme localized in the synaptic cleft that degrades ACh
Each muscle cell has only one neurom­uscular junction
Curare --> deadly arrowhead poison used by indiginous peoples of South America. It binds strongly to nicotinic ACh receptors ; hen a receptor is occupied by curare, ACh cannot bind to the receptor. Therefore, although the motor nerves still conduct normal action potentials and release ACh, there is no EPP in the motor end plate and no contra­ction
Myasthenia Gravis: autoimmune disease where the body generates antibodies that attack nicotinic ACh receptors (involves the neurom­uscular junction); TREATMENT: ACh-es­terase inhibitors (Neost­igm­ine). By reducing the rate of ACh degred­ation, ACh persists in the NMJ longer and has the increased potential to find healthy ACh receptors
Spinal Reflexes - Stretch Reflex = one synapse; simple reflex circuit that mediates muscular contra­ction following stretch of the homonymous muscle, Withdraw Reflex = polysy­naptic ; reflex circuit that mediates withdrawal from a painful stimulus
Tetanus via a wound which becomes contam­inated with the bacteria Clostr­idium tetani ; Botulism via ingesting the spores from bacteria (Clost­ridium botulinum) allowed to grow in an anaerobic enviro­nment
Tetanus and Botulism (40% homology)= both diseases, the toxins from the 2 bacteria block the release of neurot­ran­smi­tter; DIFFER­ENCE: Tetanus toxin blocks the release of inhibitory neurot­ran­smi­tter. Botulinum toxin blocks the release of excitatory neurot­ran­smi­tter.

Motor System (cont'd)

Primary Motor Cortex - located on the precentral gyrus, and contains a somato­topic map of the skeletal muscul­ature. A subset of the neurons project directly to the spinal cord forming the cortic­ospinal tract
Supple­mentary Motor and Premotor Cortices - motor cortical areas that project to and are located anterior to the primary motor cortex. Involved in complex motor sequences and movement prepar­ation
Cerebellum compares the intended movement with the actual movement and makes corrective adjust­ments; large neural lobe located on the lower posterior region of the brain. Involved in numerous functions, and is partic­ularly important in the control of motor coordi­nation. Heavily interc­onn­ected with the cerebrum, partic­ularly the cerebral cortex
Cerebellar Cortex - the outer, highly folded surface of the cerebe­llum; Deep Nuclei - Nuclear struct­ures, analogous to the Basal Ganglia in the cerebrum, that lie below the cortex in the depth of the cerebellum
Basal Ganglia --> arge nuclei in the center of the brain interc­onn­ected with the cerebral cortex and the thalamus. Involved in motor planning and the initiation of motor sequences (e.g. Parkin­son's Disease)
Parkin­son's Disease: Destroy dopami­nergic neurons in basal ganglia; difficulty initiating movements; resting tremors
Multiple Sclerosis: demyel­ination of neurons in cerebellum; difficulty making precise movements; action tremors
Resting tremor occurs when the muscle is relaxed, such as when the hands are resting on the lap; Essent­ial­(ac­tion) tremor of the hands usually occurs when the patients use their hands
